How to Insert Checkbox in Google Sheets: Step-by-Step Guide

What is a checkbox in Google Sheets and why use it?

A checkbox in Google Sheets is a small interactive control that stores a boolean value: TRUE when checked and FALSE when unchecked. It’s a simple, visual way to track completion, status, or binary decisions directly in your data. Checkboxes are especially useful for task lists, approvals, inventory checks, and project dashboards because they let you tally completed items with SUM or COUNTIF formulas and trigger conditional formatting for quick insights. Because the state of a checkbox is a boolean, you can link it to other cells, convert it to numeric values (1 for checked, 0 for unchecked), and build dynamic reports that update as you check or uncheck items. In short, checkboxes turn static numbers into interactive, actionable data within Sheets, which helps teams and individuals stay aligned without additional apps.

Key benefits include: visual clarity, immediate feedback, easy aggregation, and seamless integration with formulas and data rules. The How To Sheets team often recommends starting with a simple checklist, then expanding to a broader dashboard that combines checkboxes with counts, filters, and conditional formatting to surface important patterns at a glance.

Quick ways to insert checkboxes

Google Sheets provides a couple of reliable ways to add checkboxes. The most straightforward method is to select the target cells, then go to Insert > Checkbox. This places a checkbox in every selected cell and assigns a TRUE/FALSE value to each one. If you’re working with a large range, this single action saves you from inserting each box individually. A second option is Data validation: choose the target range, go to Data > Data validation, and set Criteria to Checkbox. This approach is useful when you want to ensure only checkbox states can appear in the cells, which can reduce data input errors.

Tip: When you need a uniform set of checkboxes in a column or row, selecting the entire range before inserting guarantees consistent placement. You can also copy and paste checkboxes to adjacent cells, which is handy for long lists. Remember that copied checkboxes preserve their TRUE/FALSE state and can be reused across sheets or files.

Checkbox values and linking cells

A checkbox’s value is TRUE when checked and FALSE when unchecked. You can display a text label or a numeric value in a neighboring cell by using a simple formula. For example, =IF(A2, "Done", "Not done") translates the checkbox state into a friendly label. If you want a numeric tally, using =SUM(A2:A10) or =COUNTIF(A2:A10, TRUE) counts checked boxes in a range. You can also convert booleans to 1/0 with =--A2 or =A2*1, which is useful for arithmetic sums or dashboards.

This linkage lets you build dynamic dashboards where a single click in a checkbox updates multiple downstream visuals, such as progress bars, completion rates, or conditional formatting triggers.

Customizing checkbox behavior with formulas

Beyond basic counts, you can tailor checkbox logic to fit your workflow. For example, you can drive a status column with a formula that reacts to a checkbox in the same row: =IF(A2, "Complete", "Pending"). To create automatic task summaries, combine multiple related checkboxes in a row using =IF(AND(A2, B2), "Ready", "In progress"). Numeric conversions are handy for dashboards: =IF(A2, 1, 0) converts TRUE to 1 and FALSE to 0, enabling clean numeric totals across a sheet.

Note: When you rely on multiple formulas, consider locking references with $ to prevent unintended shifts when you copy formulas across rows or columns.

Visual styling and conditional formatting

Conditional formatting is a powerful companion to checkboxes. You can color entire rows based on a checkbox’s state: select the range, go to Format > Conditional formatting, and use a custom formula like =A2=TRUE to apply a color when the checkbox in column A is checked. This makes completed items stand out and simplifies scanning large lists. You can also color-code the checkbox cell itself or use separate status columns to trigger color rules. Just ensure your range references are correct (e.g., A2:A100) so formatting updates as you fill more rows.

Advanced layouts may apply different colors for partial completion or overlapping tasks by using multiple conditional rules tied to separate checkboxes or status columns.

Common pitfalls and troubleshooting

Common issues include merged cells within the checkbox range, which can prevent proper checkbox rendering or break copying. Avoid merging cells in the area where you plan to insert multiple checkboxes. If you insert checkboxes and then resize columns, the boxes may appear misaligned; consider fixing column widths before drafting your list. When you copy or fill checkboxes across a range, ensure the destination cells are the intended target and that the formulas you rely on (e.g., =SUM or =COUNTIF) reference the correct ranges. If links to adjacent cells don’t update as expected, double-check absolute vs. relative references and confirm that the checkboxes themselves contain TRUE/FALSE values, not text.

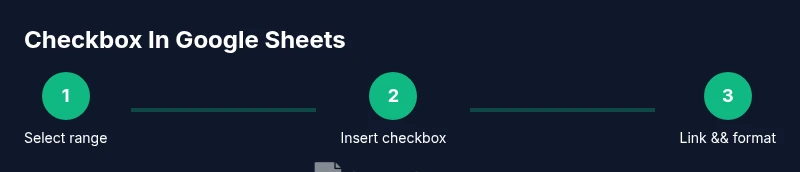

Step-by-step workflow: inserting and using checkboxes (quick-start)

1. Open your Google Sheet and select the target range where you want checkboxes.
2. Insert checkboxes via Insert > Checkbox (or use Data validation with Criteria: Checkbox for stricter input).
3. If you want a labeled or numeric representation, add a neighboring formula (e.g., =IF(A2, "Done", "Not done")).
4. Apply conditional formatting to highlight completed rows by referencing the checkbox state (e.g., =A2=TRUE).
5. Copy the checkbox setup to additional rows or columns as needed, ensuring range accuracy.
6. Test by toggling a few boxes and verifying that related formulas update correctly (SUM, COUNTIF, or custom text).

Time: typically 5–15 minutes for a small list; larger dashboards may take longer depending on complexity.

Practical examples: tracking tasks, counts, and dashboards

Example 1: A simple task list across a project board with checkboxes in column A and a status label in column B. The formula in B2 could be =IF(A2, "Done", "Pending"). The total completed tasks can be calculated with =COUNTIF(A2:A20, TRUE) in a summary cell, or a weighted progress bar by using a percentage like =COUNTIF(A2:A20, TRUE)/COUNTA(A2:A20).

Example 2: A weekly plan where each day has a checkbox and a numeric score in another column. Sum the scores for checked days with =SUMIF(A2:A8, TRUE, C2:C8). This approach keeps your plan compact while delivering actionable insights in real time.

Example 3: A dashboard that uses multiple checkbox columns to track stages (e.g., Design, Development, Testing). You can create a composite status with =IF(AND(D2, E2, F2), "Ready", "In progress"). As team members update their boxes, the dashboard visually reflects progress.

Best practices for large sheets and teams

For larger sheets, structure matters more than ever. Use named ranges for common data blocks to avoid broken references when expanding your list. Separate input controls (checkboxes) from computed results to reduce confusion and make audits easier. Establish a standard convention: one checkbox column per task category, consistent column order, and a dedicated summary area for totals and progress. When collaborating, protect critical cells that contain formulas while allowing checkbox areas to be edited by team members. Finally, test your setup with sample data to verify that all linked formulas and conditional formatting behave as expected before publishing or sharing the sheet.
